PRODUCT SIZE |
PRODUCT WEIGHT 55.1 lbs (25 kg) |
SHIPPING BOX SIZE |
BOX WEIGHT 68.3 lbs (31 kg) |
MOTOR 500W (Sustained), 48V Brushless Rear Hub Motor |
THROTTLE Throttle from initial pedal |

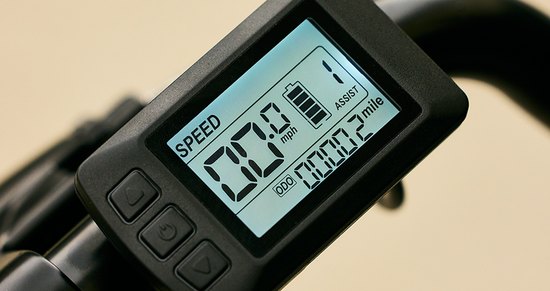

DISPLAY LCD Smart Easy Read Display with Backlight |
SPEED Up to 20 MPH (32.2 km/h) on Throttle and Pedal Assist |
BATTERY Integrated Lithium-ion 46.8 V, 10.4Ah |
SENSORS Cadence |
CHARGER 54.6V / 2 A |
CHARGE TIME Up to 6 Hour Charge Time |
CHARGE CYCLES 500 cycles |
RANGE 53 Mile (85.3 km) Average Range on Pedal Assist Level 1 |
FRAME 20" (50.8 cm) Steel Frame |
FORK 20" (50.08 cm) Suspension Fork |
WEIGHT LIMIT 265 lbs (120 kg) |
KICKSTAND Included |
CASSETTE Single-speed |
SHIFT LEVER N/A |
BRAKES Disc Brakes |
RIMS Alloy Monolayer Wall |
SPOKES Stainless Steel |
TUBES Butyl Rubber |
HUBS Alloy with Quick Release |
TIRES |
SADDLE PU |
SEATPOST N/A |
STEM Alloy |
SEAT CLAMP N/A |
HANDLEBARS Alloy |
GRIPS TPR |
FOOT PEGS None |
RACKS None |
CHAIN 1/2 x 3/32 x 42T x 170L, with Steel Crank |
RECOMMENDED RIDER HEIGHT 5'2" (157.5 cm) + |
E-bikes have many components and each year’s technology brings new features and advances to keep track of. We want to simplify the search process so you can shop with confidence. Read on to learn about important features to consider when purchasing an e-bike:
-
TIRES
- Where do you ride? The BMX's performance tires are high-tread. The VOLT’s road tires are aerodynamic for fast everyday commuting while the FLEET’s beach cruiser tires offer more cushion and traction for a more comfortable, laid back ride. The ZIP features even thicker tires with substantial tread for riding on or off the road.
-
MAX SPEEDS
- Max speed is an important factor to consider depending on your needs, comfort level, and state regulations. Our throttle and pedal assist features power your ride up to 20 mph.
-
GEARS
- Also referred to as speeds (i.e. 3-speed bicycle), gears allow you to change the ease with which you pedal depending on the incline or terrain. For example a steep incline may require easier pedaling and thus a lower gear, while pedaling downhill may require a more resistant pedal and thus a higher gear so that your pedaling actually helps propel you forward and in addition to gravity. You might opt for a bike with several gears versus a single-speed bike, depending on your needs, but bear in mind that additional gears add weight to your bicycle. Because our bikes are electric, we’ve included features like a throttle and pedal assist to minimize the effort required to ride, in lieu of multiple gears. Our ZIP bike however does include 6 gears for a variety of inclines and terrains.
-
BATTERY LIFE
- Batteries are important to consider for the longevity of your bicycle. Our e-bike batteries have a 600-cycle lifespan and have been tested to meet UL2271 standards to optimize performance.
-
MAX RANGE
- This refers to the maximum distance your e-bike will travel while employing the throttle at medium capacity on a fully charged battery before charging is required. Check below for each bike’s max range* on a single charge.
- BMX E-bike: 18.9 mile max range
- VOLT E-bike: 32 mile max range
- FLEET E-bike: 37.2 mile max range
- ZIP E-bike: 37 mile max range
- * Varies slightly depending on rider weight and riding terrain.
-
THROTTLE
- Some e-bikes are equipped with a throttle, a mechanism that powers the motor with a twist on the handlebar. In addition to pedal assist, all SWFT e-bikes feature a throttle which you can use in tandem with the pedal-assist, or on its own without pedaling.
-
PEDAL ASSIST
- Most e-bikes are equipped with pedal assist, an operating mode that activates the motor when you pedal to give your ride an electric-powered boost. Some e-bikes forgo pedal assist in favor of a throttle. All SWFT e-bikes feature both a throttle and pedal assist so you can choose how to power your ride, or activate both simultaneously for extra motor power.
-
WEIGHT
- Bike weight is a factor to consider depending on how you will store and transport your e-bike. Electric bikes tend to be heavier than traditional bikes due to the added motor, battery and other features. We’ve developed our SWFT e-bikes to optimize performance and minimize weight, with each model falling below the average weight of its respective category.
- BMX: 39.7 lbs
- VOLT: 44.1 lbs
- FLEET: 50.7 lbs
- ZIP: 66.1 lbs
-
CLASS
- E-bikes are typically designated as Class 1, 2, or 3, according to available features and maximum speed. SWFT e-bikes fall under the Class 2 category meaning they feature both pedal assist and throttle with a maximum assisted speed of 19.8 mph.
-
SEAT
- Seat type is important to consider depending on what type of ride you are looking for. The VOLT features an aerodynamic seat for a faster, more athletic ride while the FLEET is equipped with a wider, more cushioned seat for a laid back and comfortable ride. Our ZIP model features an elongated motorcycle style seat for stability, comfort, and extra room.
Each of our e-bikes works for a range of rider heights and the BMX, FLEET, and VOLT e-bikes feature adjustable seat posts. See below to determine which e-bike is best for you.
- BMX—best for riders 5’3” and up. See more height and fit details for the BMX here.
- FLEET—best for riders between 5’7” - 6’2”. See more height and fit details for the FLEET here.
- ZIP—best for riders 5’5” and up. See more height and fit details for the ZIP here.
- VOLT— best for riders 5’9” and up. See more height and fit details for the VOLT here.
Our warranties cover your SWFT E-Bike purchase against manufacturing defects. Just register your bike and read the details below:
- Frame: 12 months
- Battery: 12 months
- Electric Motor: 12 months
- Charger/Controller: 12 months
- Other Electric Parts: 12 months
This warranty covers manufacturer defects and normal use only. It does not cover the product due to rider misuse, neglect, accident or improper servicing. Any attempt of repair done by the consumer (other than tires and normal adjustments) will void the warranty.
